Flagship Project

RobotDraw

SVG to RAPID: turning vector artwork into robot code, validated on a real six-axis arm.

A self-built Python and Flask application that converts SVG artwork into ABB RAPID programs for a six-axis industrial robot, generates safe lift and traversal moves, estimates run time, and runs the whole workflow from a local browser interface. Hardware-validated on an IRB 1100 across five drawings.

Hero image (placeholder):

Drop the IRB 1100 drawing photo here

A full-stack robotics project sits on three legs: troubleshoot it on a live site, simulate it before it exists, and build the application on top of it. RobotDraw is the third leg made concrete: a human-usable application layer that sits on top of raw industrial motion.

Why

Most people who can program an industrial robot write joint targets by hand. I wanted to prove I could put a usable layer above that: hand the machine a normal vector drawing and have it produce clean, readable RAPID that runs safely on real hardware. It started as a personal challenge in robot programming, and it doubles as evidence of the exact skills an ABB integration role asks for.

Goals and constraints

  • Accept practical SVG artwork and convert paths into ordered drawing strokes.
  • Map 2D geometry onto a calibrated robot work surface without reach, wrist, or configuration faults.
  • Generate readable RAPID, not an opaque dump of points.
  • Keep speeds and lift height easy to tune, and always return to a safe reset position.
  • Run locally with minimal setup.

What it is

RobotDraw parses an SVG, transforms and orders the vector paths into drawing strokes, inserts safe pen-up lift and traversal moves between strokes, generates RAPID modules for a six-axis arm, and estimates execution time. The whole workflow runs from a local browser interface, so tuning a drawing does not require touching a controller.

The tested target is an ABB IRB 1100 fitted with a custom spring-loaded marker holder. The generated code uses the real RAPID vocabulary of the job: MoveL, MoveJ, MoveC, MoveAbsJ, Offs(), SingArea\Wrist, ConfJ, and proper robtarget / wobjdata / speeddata declarations.

The workflow

Local web interface (placeholder):

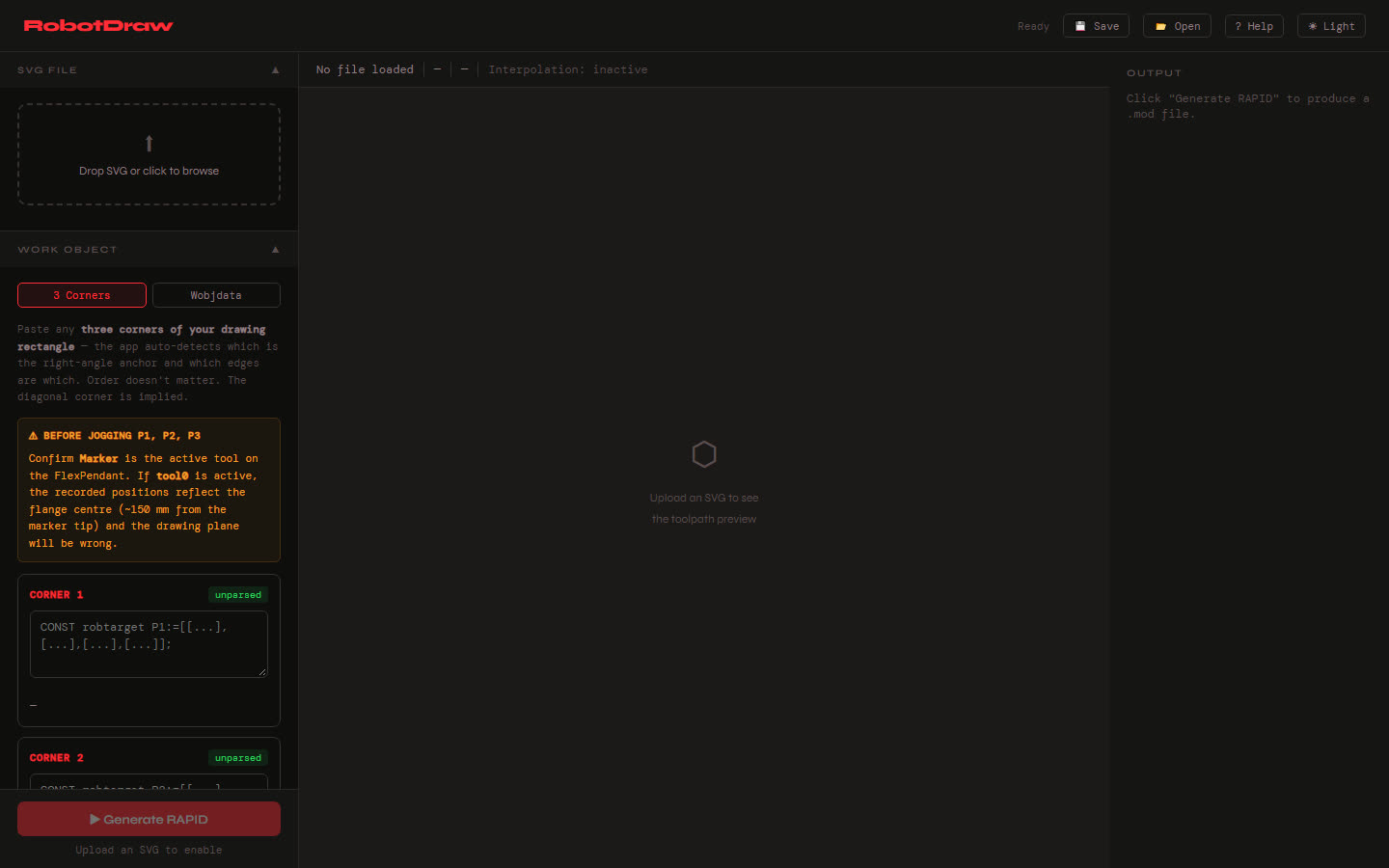

Drop a screenshot of the local browser UI here
  1. Vectorize artwork to SVG (Inkscape or a raster-to-vector service), then load it in the browser UI.
  2. RobotDraw parses paths, orders strokes, and maps them onto the calibrated work plane.
  3. Pen-up lifts and traversals are inserted between strokes; safety checks guard reach and orientation.
  4. Readable RAPID modules are generated with a run-time estimate.
  5. The code loads onto the controller and draws.

Hardware validation

RobotDraw v1 is physically validated on an ABB IRB 1100. Five drawings ran successfully on the real robot: the ABB logo, IRB line art, a flowers piece of 586 strokes, IRB 1100 art, and a detailed eyecatch of roughly 3,000 strokes on A4. The run-time estimator was calibrated against those real runs.

Finished drawings on hardware (placeholder):

Drop photos of the five validated drawings here

The bugs, kept on the record

A build in June introduced three geometry bugs worth naming, because finding them is the whole point. A lift-direction sign was computed in the drawing-plane-normal frame but applied to RAPID Offs() heights, which offset along the work-object Z axis, a different frame. The result: the marker pressed into the table instead of lifting. A sibling bug emitted a surface quaternion verbatim as the tool orientation, so the pen pointed the wrong way on pen-up. A third silently rotated portrait drawings by 90 degrees. None are syntax errors, and all were found the expensive way, on hardware. That experience is what led directly to a companion validator (see rapid-lint).

Where it stands now

The project split into two versions. RobotDraw v1 is the stable, hardware-validated tool, frozen except for bug fixes and UX. RobotDrawPro is a software-complete fork aimed at offline programming: a click-to-draw path editor with MoveL / MoveC and tool I/O steps, DXF import, process profiles, a travel optimizer, and portable project files, all behind three green regression suites.

Honest scope: the June fixes and the entire Pro fork are simulator-tested only. They have not yet run on a physical robot. Only v1's five drawings are hardware-validated, and nothing on this page claims otherwise.

Stack

  • Robot / tooling: ABB IRB 1100, RobotStudio, FlexPendant, custom spring-loaded marker holder.
  • Software: Python, Flask, a local browser UI (pywebview), quaternion and plane-interpolation math.
  • Pipeline tools: Inkscape and raster-to-vector conversion for artwork prep.

What I'd Do Next

  • Run the Pro fork's offline-programming path editor on the physical IRB 1100 to validate it on hardware.
  • Make a clean rapid-lint pass a precondition before any hardware session, so the June bug class can never reach the robot again.
  • Add plane-normal lifting for tilted surfaces (a guardrail warning exists today; the feature does not).
